HDPE - CD 110 mm with 5 Subducts 33/28 mm (PECD)

HDPE – CD 110 mm with 5 Subducts 33/28 mm (PECD)

  • HDPE Corrugated Main Duct & Sub-Duct Design
  • Nominal Outside Diameter Main Duct – 110 ± 2 mm
  • Nominal Inner Diameter Main Duct – 90 ± 2 mm
  • Wall Thickness Main Duct – 2.5 ± 0.5 mm
  • Nominal Outside Diameter Sub-Duct – 33 ± 1 mm
  • Nominal Inner Diameter Sub-Duct – 28 ± 1 mm
  • Wall Thickness Sub-Duct – 2.5 ± 0.3 mm
  • Compound Material – PE100, virgin raw-material only
  • Compound Density @ 25°C – 0.950 – 0.958 g/cm3, min
Request a Quote
Category:

Description

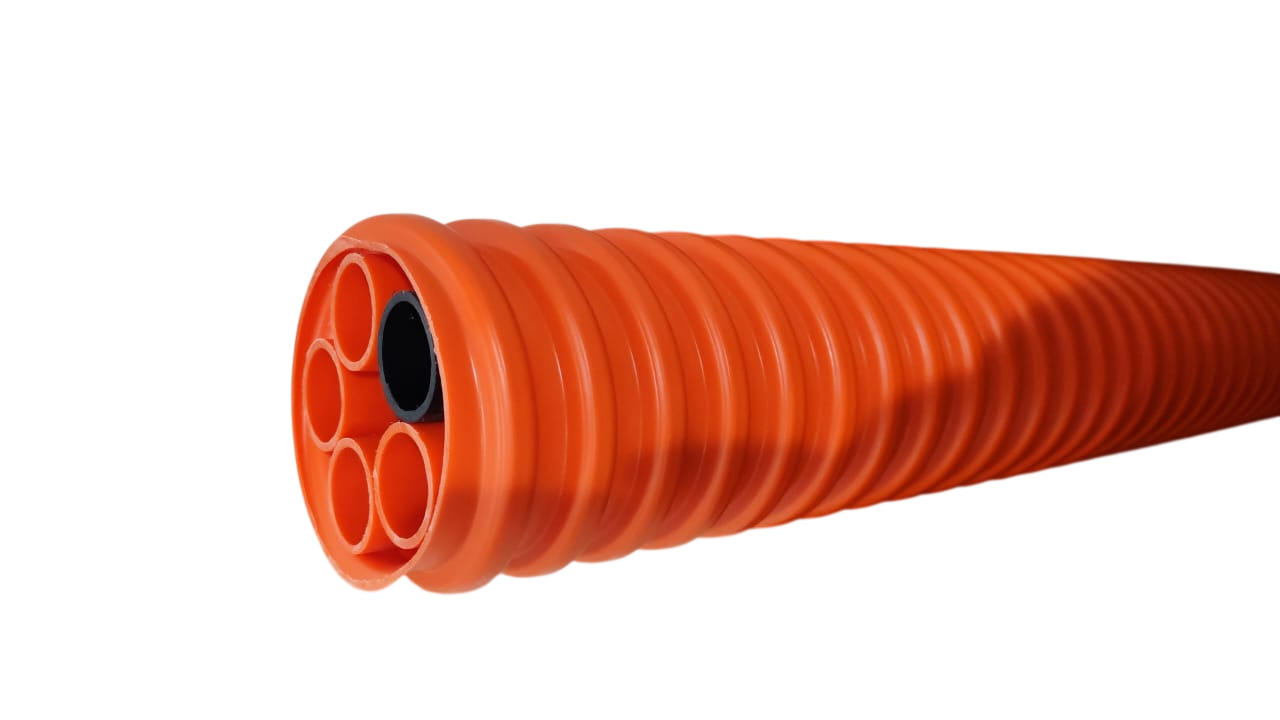

High Density Polyethylene Corrugated Duct (PECD) with a 110 mm outer diameter, internally equipped with 5 pre-installed HDPE subducts (33/28 mm) for fiber optic cable installation. The duct offers high mechanical strength, flexibility, and robust protection for telecom cables, ensuring safe, organized, and efficient cable routing in underground networks. This product will be supplied through an STC-approved manufacturer, guaranteeing full compliance with Saudi Telecom Company (STC) technical specifications and project requirements.
