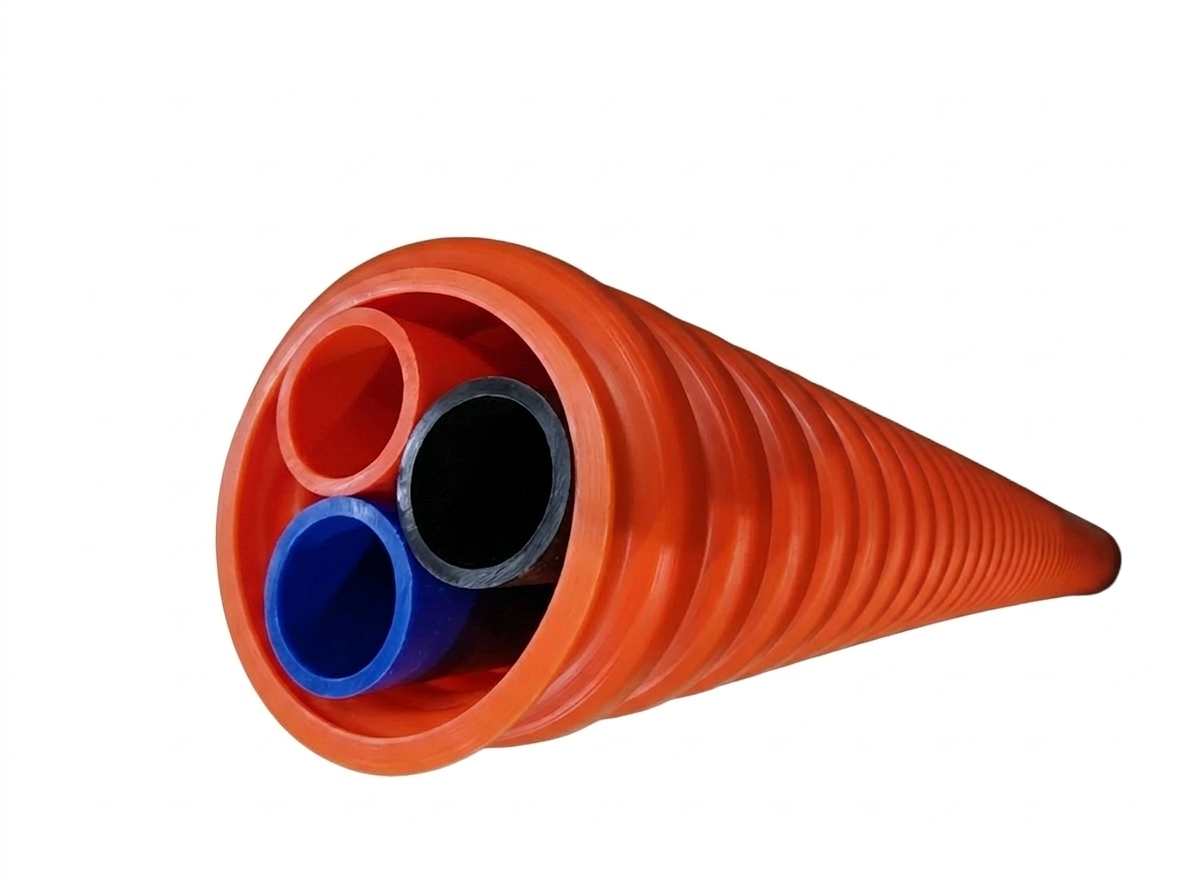

HDPE - CD 90 mm with 3 Subducts 33/28 mm (PECD)

HDPE – CD 90 mm with 3 Subducts 33/28 mm (PECD)

  • HDPE Corrugated Duct System with main duct and integrated sub-duct design
  • Main Duct Dimensions: 90 mm OD × 70 mm ID with 2.5 mm wall thickness
  • Sub-Duct Dimensions: 33 mm OD × 28 mm ID with 2.5 mm wall thickness
  • Manufactured from Virgin PE100 Material for superior durability and performance
  • High-Density Compound (0.950–0.958 g/cm³ at 25°C) for enhanced strength and reliability
  • Excellent Impact and Crush Resistance for underground cable protection
  • Suitable for Fiber Optic, Telecom, and Utility Infrastructure Applications
  • Designed for Long-Term Service Life in demanding environmental conditions and network projects
Request a Quote
Category:

Description

High Density Polyethylene Corrugated Duct (PECD) with a 110 mm outer diameter, internally equipped with 5 pre-installed HDPE subducts (33/28 mm) for fiber optic cable installation. The duct offers high mechanical strength, flexibility, and robust protection for telecom cables, ensuring safe, organized, and efficient cable routing in underground networks. This product will be supplied through an ZAIN-approved manufacturer, guaranteeing full compliance with Zain technical specifications and project requirements.
